History of the Rolex Sea-Dweller: Complete Guide

When the first model was released, it gained no popularity or buzz outside the diving community, and at that time, like most Rolex watches, it was considered a very specific high-precision diving tool.

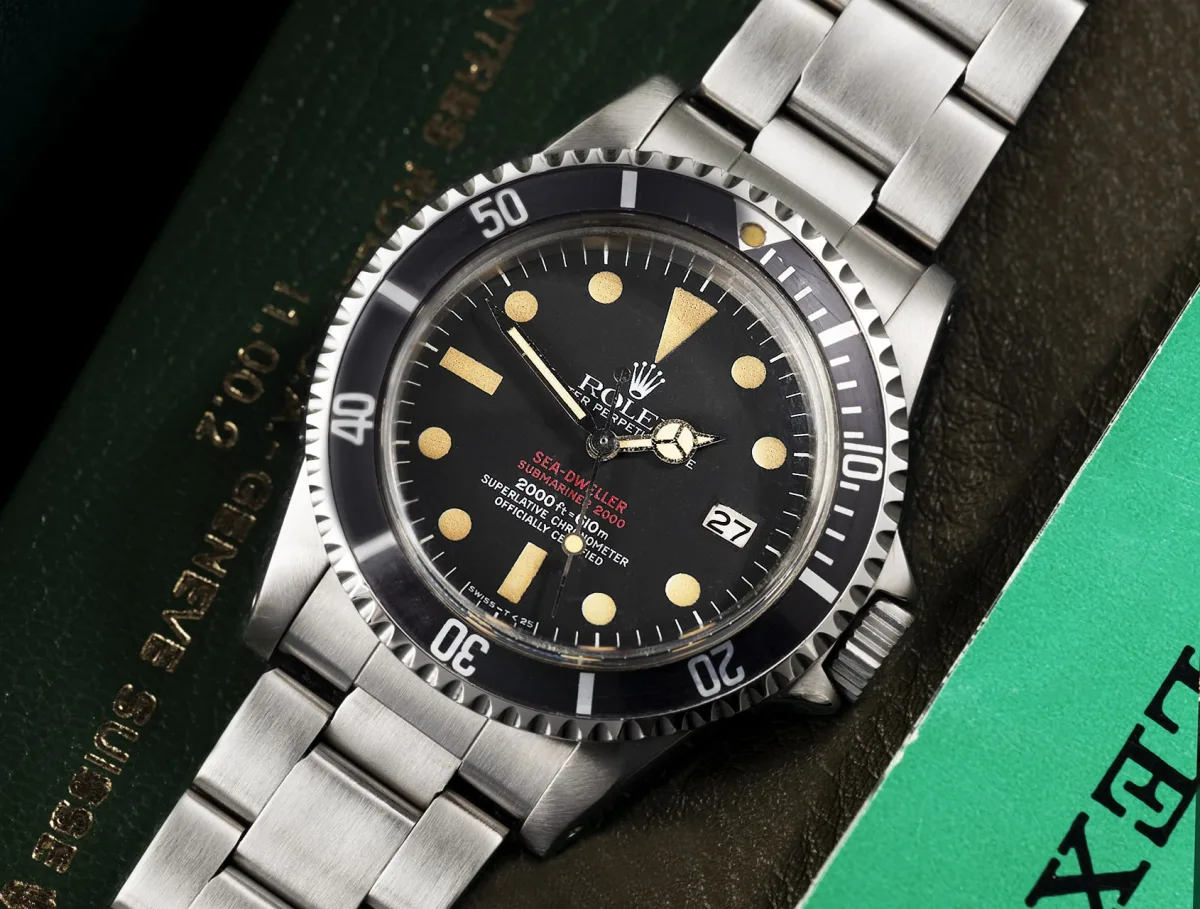

Fast forward to today, and the original model Ref. 1665 is now one of the most sought-after and collectible vintage variants and became known as the "Double Red" Sea-Dweller due to two lines of red text on the dial, and was also sometimes called the Submariner 2000 in recognition of the new official water resistance rating of 2000 feet.

However, there was an ultra-rare prototype known as the "Single-Red," with one red line on the dial representing the Sea-Dweller logo, and without the "Submariner 2000" inscription.

Initial Movement and Incremental Design Updates

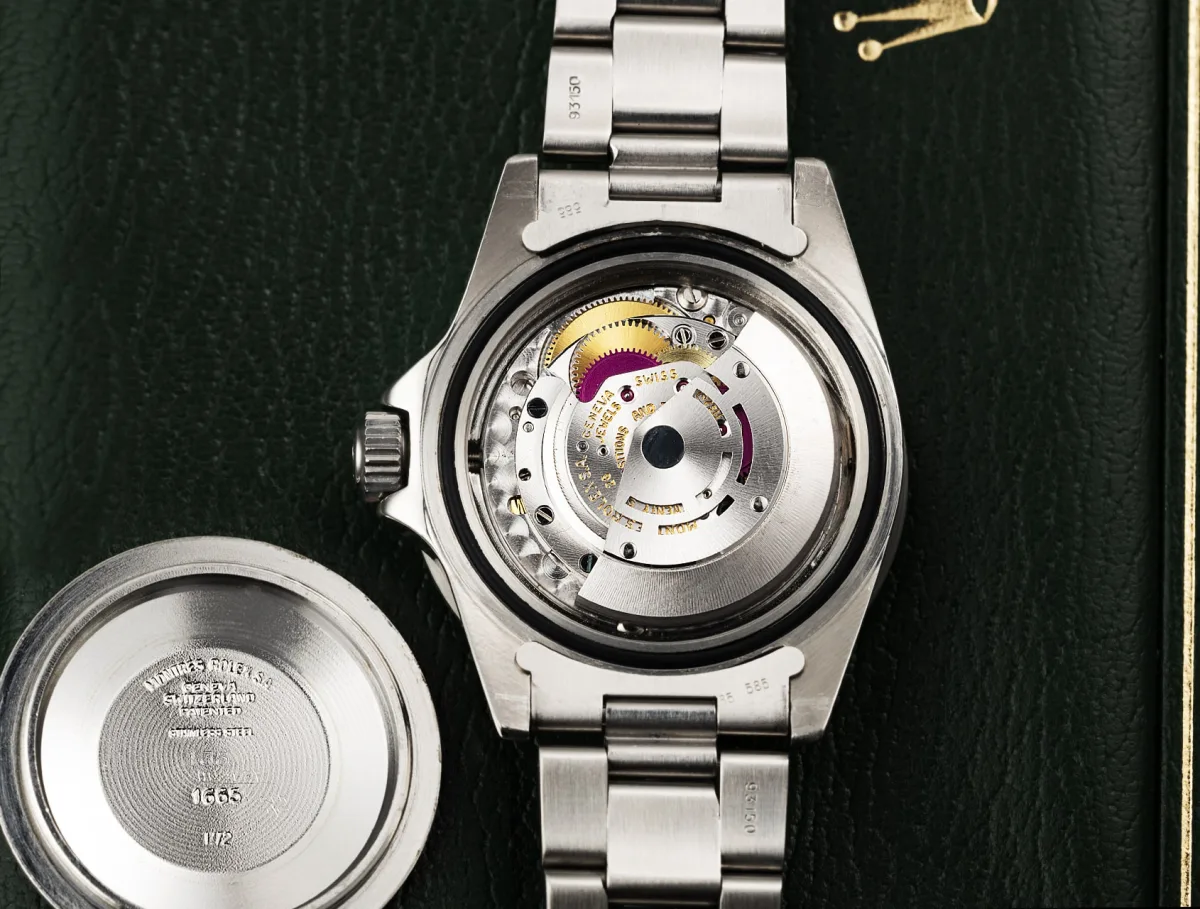

Let's set aside the design and diving features for a moment and look under the dial of the first-ever Double Red Sea-Dweller. Rolex had to determine which movement would suit such professional and complex diving watches, and they eventually settled on the in-house caliber 1575, which was an evolution of the existing caliber 1565, receiving several enhancements that increased its reliability and functionality.

Durability and reliability were at the forefront of Rolex's approach when developing the 1575 to ensure maximum safety when diving to extreme depths. Convenient features like the quick-set date function were not a priority since the focus was on the core functions of timekeeping and countdown for professional divers.

Focusing on the seamless operation of Sea-Dwellers and ensuring they were less susceptible to any mechanical issues truly helped cement Rolex's reputation as the world's best sports watch manufacturer for the next 50 years.

The caliber 1575 was constructed to beat at 19,800 vibrations per hour, which was typical for precise movements of the time. The movement included a date function, which was an important aspect of the Sea-Dweller's appearance and distinguished them from professional watches without a date.

The absence of a quick-set date means the only way to set the date is to move the hands past midnight, something we still see even on some haute horlogerie watches today. Another very important aspect the 1575 model had to possess was accuracy, which is commonly agreed to be -4/+6 seconds per day, considered the COSC standard even today.

Hidden Variants Within Ref. 1665

While the "Double Red" was in the spotlight as a popular tool and now as a well-known collectible piece within the Rolex community, there were two lesser-known sub-variants of Ref. 1665.

The first of these, introduced in the late 1970s, earned the nickname "Great White" mainly due to the all-white text on the dial and the removal of the "Submariner 2000" inscription. Otherwise, the watch remained unchanged, but it was produced for a short period, which, of course, helped it become very sought after.

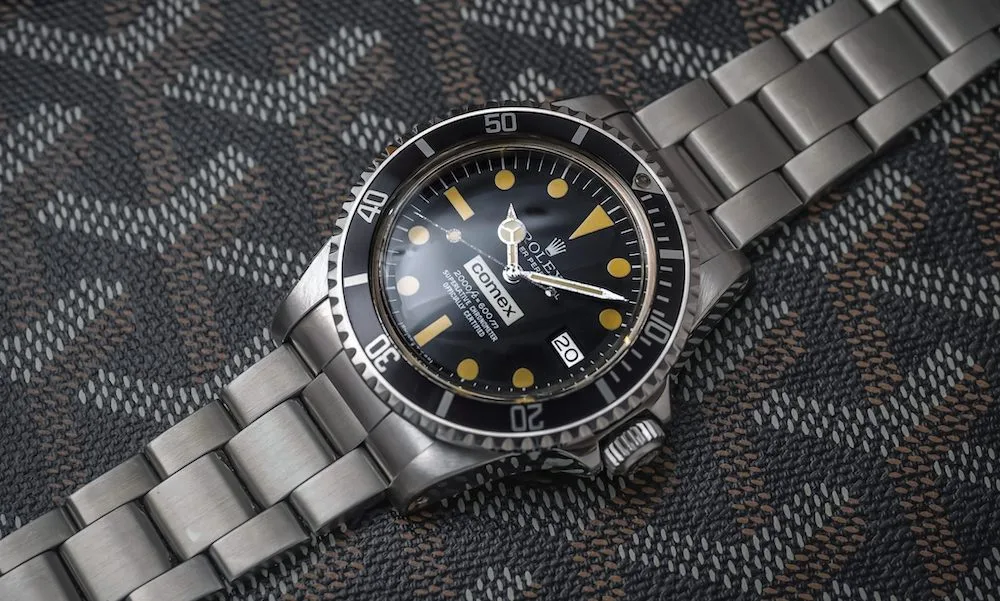

Throughout the history of the Sea-Dweller model, you will also notice a mysterious partnership appearing on some pieces, now known as COMEX. This was a collaboration between Rolex and the French diving company "Compagnie Maritime d’Expertises." This partnership aimed to meet the needs of divers, leading to the development and enhancement of the helium escape valve.

The first model with the COMEX logo on the dial was the Ref. 1665 model, and it also became highly sought after and collectible.

Introduction of the "Triple Six" and Caliber 3035

The 1575 model served for a very long time, but eventually, Rolex headquarters decided an update was necessary. In the early 1980s, Rolex finally introduced the Ref. 16660 "Triple Six" with the new caliber 3035 for the Sea-Dweller after a very long use of the original 1575 model. The introduction of Caliber 3035 brought with it several much-needed key advancements.

One of the most notable was the coveted Quick-Set-Date function. Now, finally, professional deep-sea divers could change the date independently from the hour hand in an instant, by pulling the crown to an extra step, as many of us are familiar with. Although this function was certainly not crucial for diving, it was an overall upgrade to the Sea-Dweller, bringing it in line with the rest of the Rolex catalog offerings.

The caliber 3035 also features a higher beat frequency of 28,800 beats per hour compared to the 19,800 beats per hour of the Caliber 1575. This provided a visually smoother sweeping seconds hand and improved timekeeping accuracy.

Years passed since the 1575 caliber was used, and during this time, Rolex had radically improved its manufacturing technologies, leading to enhanced quality of components and increased precision in assembling the new caliber 3035. The 3035 was also finally officially chronometer certified, ensuring it underwent proper testing to meet stringent specifications, providing even more peace of mind for professional divers who sometimes trust their lives to these watches.

Design Updates

The Triple Six also underwent some important design and specification changes: for the first time in the Sea-Dweller line, sapphire crystal was introduced, and the depth rating was increased to 4,000 feet. Rolex also increased the case size to accommodate the new glass and withstand pressure at greater depths.

One of the most obvious changes, noticeable to modern collectors, is the adjustment of the text on the dial: early models retained the "Sea-Dweller" and "Submariner 2000" inscriptions.

In later versions, the text was changed, and the dial featured the "Sea-Dweller" with the depth rating. The hour markers and hands of the Triple Six also used tritium luminous material, providing visibility in low-light conditions underwater.

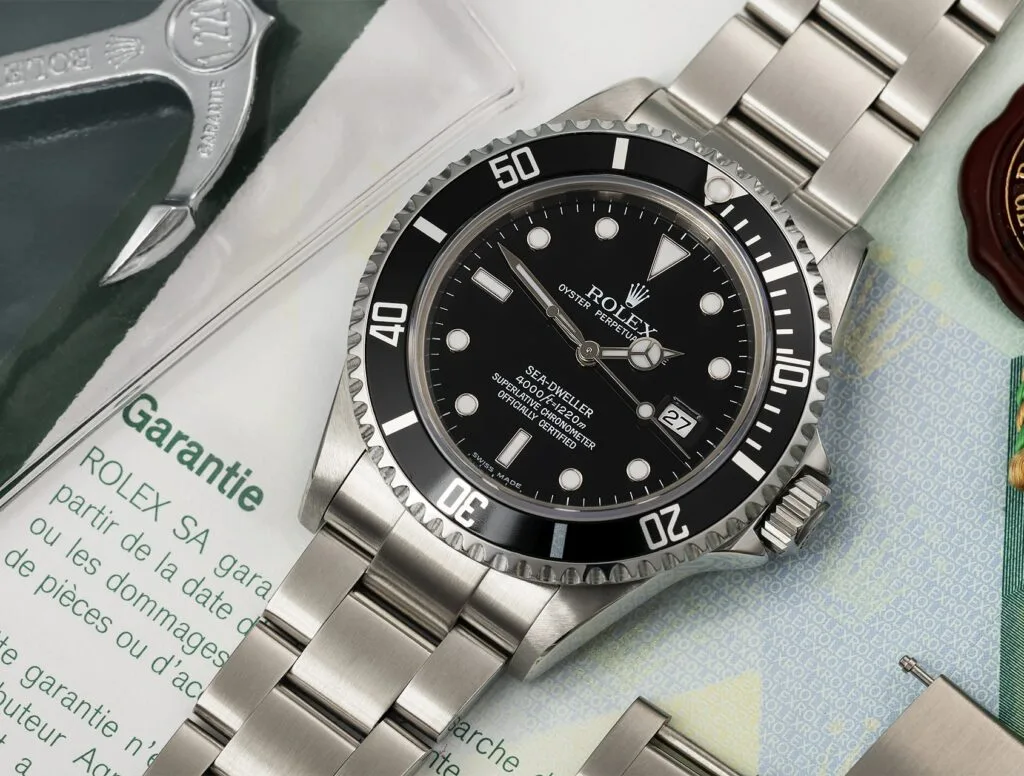

Model 16600 and Caliber 3135

In 1988, shortly after transitioning to Caliber 3035, the Caliber 3135 was introduced on the new Sea-Dweller Ref. 16600. The Caliber 3135 retained important features like the quick-set date and the already adequate beat rate but also brought some very important enhancements, such as the Microstella adjustment system, Breguet Overcoil, and Full-Balance Bridge.

Thanks to the efficiency of the new movement, Rolex managed to squeeze an additional 6 hours of power reserve. The 3135 movement was recognized as the "golden saddle" and was used not only in the Sea-Dweller model but also in all Submariner and Datejust models.

The Ref. 16600 became the model that transitioned the classic original Sea-Dweller into the modern version we have today. Some collectors refer to it as the "bridge" from the vintage model to the modern one.

Part of this is due to the model being produced for a very long time - from 1988 until it was discontinued in 2008. 20 years is a very long time in the world of Rolex. For comparison, even modern models like the iconic Daytona 116500 were produced for only 8 years. Few knew that the Ref. 16600 model would be the last classic Sea-Dweller model created after 2008, and its successor, Ref. 116600, would be released only 8 years later, in 2014.

Accordingly, the Ref. 16600 underwent various transformations while using the same number. Due to the controversial use of tritium luminous lamps in previous models, Rolex transitioned the model 16600 to use LumiNova, and then again replaced it with SuperLuminova. Although it was not as bright and vivid as tritium, it was a safer material and still provided fantastic glow, charged by the sun, even deep underwater.

Currently, Rolex is known as one of the best manufacturers of bracelets for sports watches, surpassing even offerings from brands like Patek and Audemars Piguet. The Ref. 16600 model received gradual upgrades to its bracelet as time went on during its production.

Initially, it consisted of stamped parts, but by the late 1990s, they were upgraded to a more durable construction and included solid end links, providing a firmer feel and better attachment to the wrist. The clasp was also upgraded, known as the "diver's extension," providing convenience and durability.

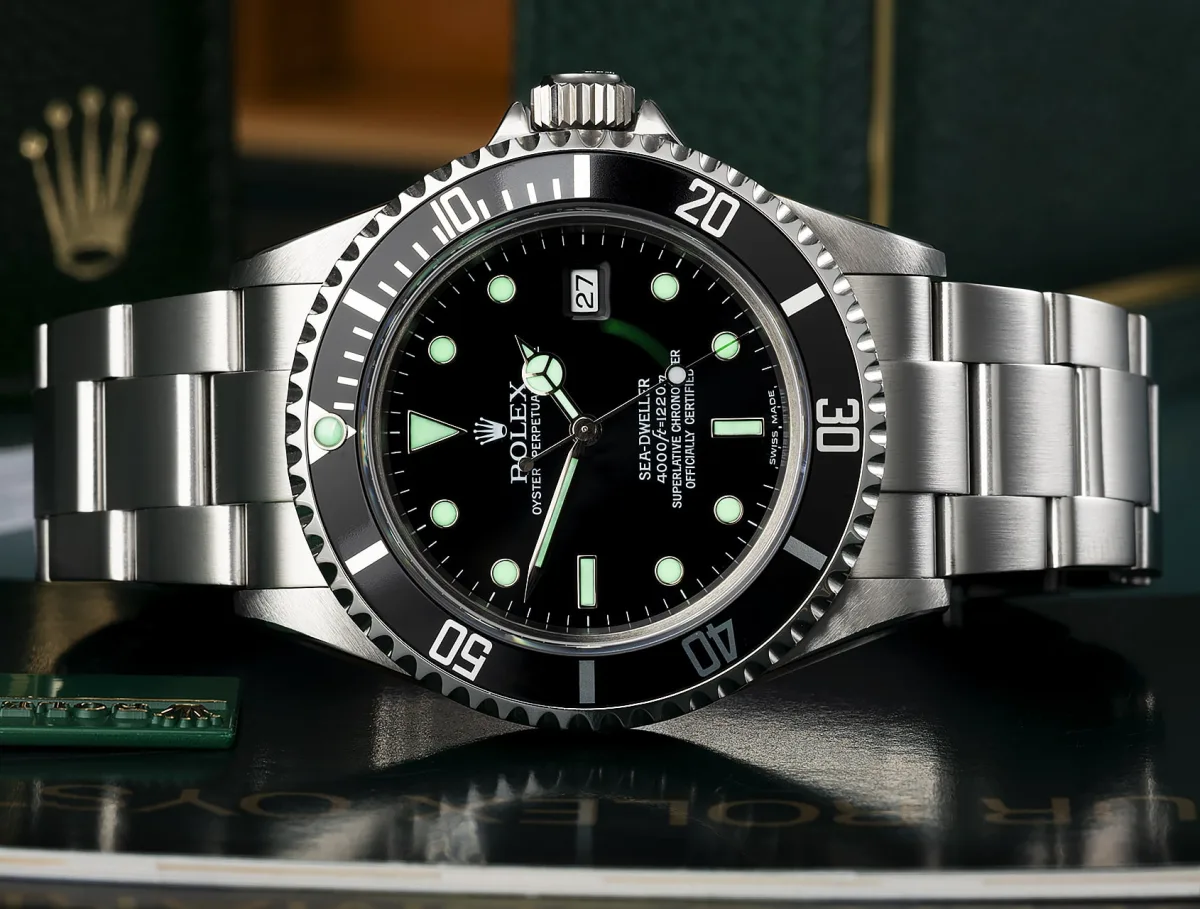

The bezel of the Reference 16600 remained almost the same as the Triple Six: a unidirectional rotating bezel with a 60-minute graduated black insert, however, the manufacturing technology for the bezel insert was constantly improved, increasing scratch resistance and preserving color. The thickness of the sapphire crystal was also increased during production to enhance strength.

The case retained its usual thickness and strength, but throughout the production period, slight dimensional changes were made. The same applied to the dial, where very minor adjustments were made - but at this point, it was clear that Rolex had moved to gradual improvements to preserve the original classic appearance of the Sea-Dweller.

Deepsea Ref. 116660

The year 2008 marked the temporary end of the classic Sea-Dweller model, but Rolex had something unusual in the works in the form of a side variant known as the Deepsea. While the Deepsea still retains the Sea-Dweller on the dial, these were completely redesigned watches. They featured a new 44mm size, Grade 5 titanium case back, and a new innovative Ringlock System - with a staggering depth rating of 12,800 feet.

Modern Model Ref. 116600

After an 8-year hiatus in Sea-Dweller production, the Ref. 116600 model was introduced in 2014. The announcement was met with open arms by dedicated collectors and vintage model enthusiasts - as thanks to its rich history, the Sea-Dweller has gained a cult following. The new modern model lasted only 3 years and was discontinued in 2017.

The 116600 model brought back to collectors everything they loved about vintage models but in a more modern and sophisticated case, suitable for contemporary Rolex watch use.

Gone are the days when seasoned deep-sea divers used mechanical watches at life-threatening sea depths. Rolex has now entered a new phase of the "luxury tool watch" segment, and many seek these diving watches as nostalgic memories of the past.

Design

To the delight of many collectors, Rolex decided to maintain the classic case size, very accurately mimicking the look and feel on the wrist of older models. Instead of making the case shape identical to modern Submariner and GMT Master II, they kept it quite classic and implemented a subtle tapered lug profile. The actual case thickness did turn out to be greater than the Submariner to maintain the 4000-foot water resistance, and when viewed from the side, it appears almost like a slab.

The balance of the traditional Sea-Dweller design language combined with modern manufacturing also allowed for the first-time use of a Cerachrom insert for the Sea-Dweller bezel.

The ceramic insert enhanced the bezel's scratch resistance and preserved its color, but at the same time increased the bezel's tendency to shatter upon impact with a hard surface, such as marble - unlike the previous bezel, which was easier to scratch, but less prone to destruction.

Collectors regarded this as one of the aspects of transitioning from tool watches to the world of luxury and show. Cerachrom bezels eventually appeared on many other sports watches within the Rolex repertoire.

The dial, while modernized, also took on a very similar appearance to the "maxi-dial" of the 11th series Submariners. The hands and markers were significantly enlarged compared to vintage Sea-Dweller models, and they were now filled with Chromalight luminous material to improve visibility in low-light conditions. Additionally, similar to the Submariner, the dial featured 4 lines of text at the "6 o'clock" position: Sea-Dweller, 4000 ft = 1220 m, Superlative Chronometer, Officially Certified.

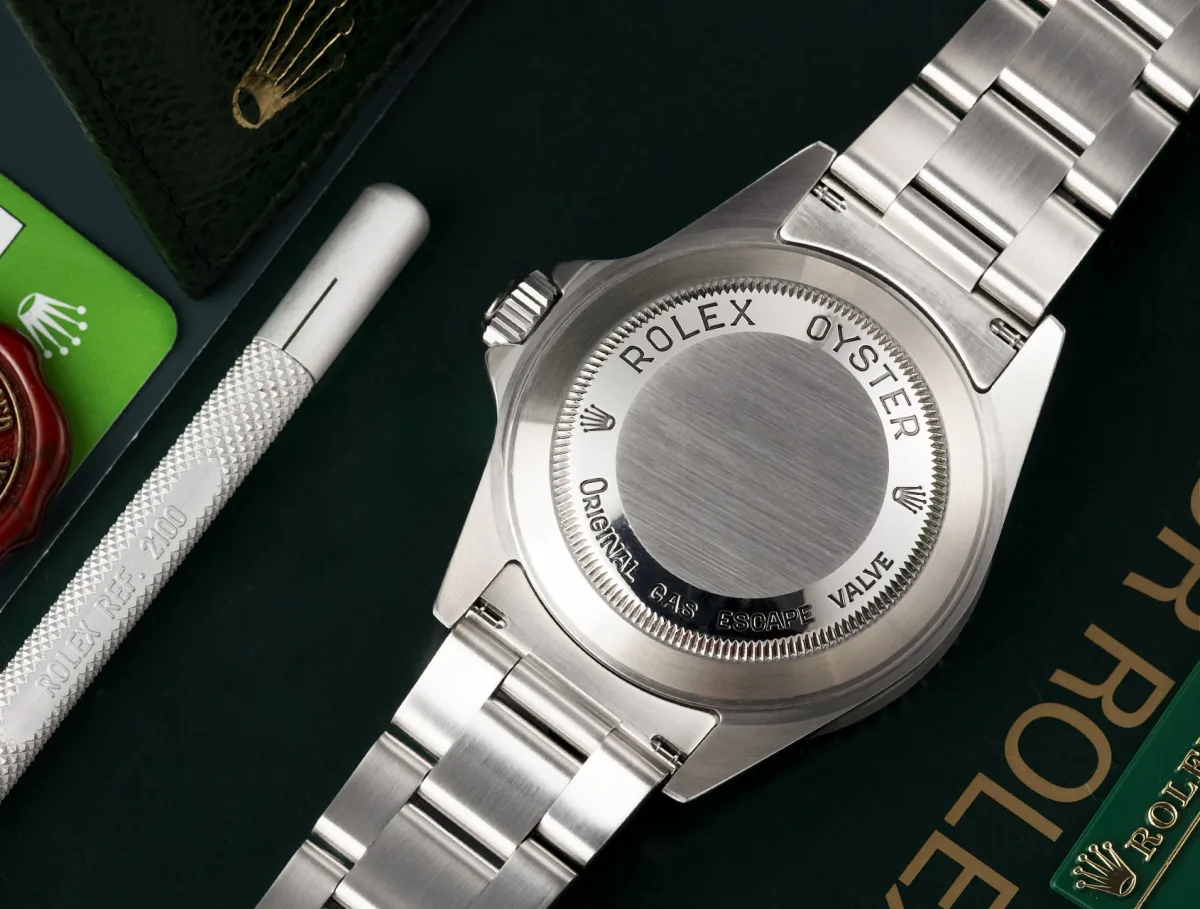

Two features that remained characteristic of the Sea-Dweller model from its inception to the appearance of Ref. 116600 and the modern variants we have now are the absence of a magnifying bubble over the date window and the helium escape valve on the side of the case.

Modernized Oyster Bracelet

The bracelet was also fully modernized thanks to the use of a solid link construction, vastly superior to both stamped and solid "end links" of past models. In addition to the solid construction, the bracelet received the Oysterlock safety clasp and the Glidelock extension system, allowing precise adjustment of the bracelet length without tools for a comfortable fit over a wetsuit.

This clasp feature, also offered on modern Submariners of this era, provides a quick way to adjust the size in the summer when the wrist expands and contracts with temperature changes, making this specific Oyster bracelet one of the most comfortable to wear in the Rolex catalog.

Caliber 3135 Returns

There were many upgraded improvements on the Ref. 116600, but, surprisingly, the movement was not part of them. The reason is simple - the proven reliability of the caliber 3135, which had been tested over the years by this point. It had established itself as one of the most reliable movements ever created by the company, and so they brought it back in this new variant.

Upon closer inspection, several interesting facts emerge, and after some research, it turns out that the 1980s caliber 3135 used in the Ref. 16600 model was also improved at the detail level, namely with the addition of the Parachrom hairspring.

This new hairspring is made of a paramagnetic alloy that is much less susceptible to magnetic fields and shocks. Additionally, it has enhanced temperature stability. This is the only part that was changed in the new 3135 model, but with it naturally came higher-quality lubricants and more precise tuning during servicing with the Microstella system.

Continuation of the Modern Deepsea

In 2014, the Deepsea returned by releasing an unexpected and unusual edition called "D-Blue" in memory of James Cameron's historic solo dive into the Mariana Trench in 2012. The design of the novelty was almost identical to the 2008 version: enlarged case size - 44 mm, Ringlock system, water resistance - 3,900 meters (12,800 feet).

The dial featured an amazing gradient transitioning from deep black to oceanic blue, symbolizing the change of color during the descent - this is the only noticeable design change of the watch compared to the previous Deepsea model.

Then in 2018, the Deepsea underwent another update, this version was named Ref. 126660, and in the same year, it was introduced at the Baselworld exhibition. This time, the watch underwent various design changes, primarily the case and lugs were adjusted to create a more balanced look. Furthermore, the bracelet width was increased, and a new Oysterlock safety clasp was applied to the clasp.

Fast forward 6 years to 2024, and Rolex has just released a new model Ref. 136668LB, a striking yellow gold variant of the Deepsea with a blue dial, very reminiscent of the Submariner Date "Bluesy."
